Kraken.js Example Shopping Cart

A non-trivial Node.js application, built on top of PayPal's Kraken.js framework. This app demonstrates a basic shopping cart and CRUD inventory management capability.

[MongoDB](www.mongodb.com) is used to manage the internal inventory system, and payments are simulated using PayPal's REST SDK against their Sandbox API environment, [api.sandbox.paypal.com](api.sandbox.paypal.com).

This example was built from the [Kraken.js Shopping Cart Tutorial](https://github.com/lmarkus/Kraken_Example_Shopping_Cart). ## Known Issues + AppDynamics is not recognizing HTTP calls to PayPal as backend HTTP transactions

Pre-Requisites

Node.js

Node.js v0.8+ is required.

MongoDB

MongoDB must be installed and running on the localhost using the default port 27017. MongoDB can be quickly started using ${MONGO_ROOT}/bin/mongod.

You can point to a different, or remote, instance of MongoDB by updating ${APP_ROOT}/config/app.json.

AppDynamics

The AppDynamics 3.8 Node.js Beta Agent has been installed as part of the application using npm install, it is installed to ${APP_ROOT}/node_modules/appdynamics.

The Agent is enabled, and configured, in ${ROOT_DIR}/index.js. Update the Controller: HostName, Port, Application Name, Tier Name, and Node name as needed.

`require("appdynamics").profile({
	controllerHostName: '127.0.0.1',
	controllerPort: 8090,
	accountName: '', //Required for a controller running in
	multi-tenant mode.accountAccessKey: '', //Required for a
	controller running in multi-tenant mode.
	applicationName: 'Kraken.js Shopping Cart',
	tierName: 'Shopping Cart',
	nodeName:'osxltsturt', //Prefix to the full node name.
	debug: true //Debug is optional; defaults to false.
});`

img/appdynamics-node-js.png.

#Starting the Application From ${APP_ROOT}, running npm start will launch the shopping cart application. By default, you can access the app at: http://127.0.0.1:8000/.

img/appdynamics-kraken-shopping-cart.png.

NOTE There is a bug on the product page displaying item price.

#Generating Load with JMeter An Apache JMeter script is included in ${APP_ROOT}/test/KrakenShoppingCart.jmx.

To run the jmeter test, download the latest Apache JMeter and the Extras Set of plugins from jmeter-plugins.org .

##JMeter Plugins Installation Guide The included JMeter script uses the Utlimate Thread Group, and a Transactions / Second display which is not included in the base jmeter installation. To add the Plugins extensions:

  • Go to downloads page
  • Choose the plugins set according to your tasks (or get all of them if you want to explore all existing plugins)
  • Extract archive contents to JMeter installation directory, the plugins should install to ${JMETER_HOME}/lib
  • Restart JMeter to load new plugins

img/shopping-cart-jmeter-script.png.

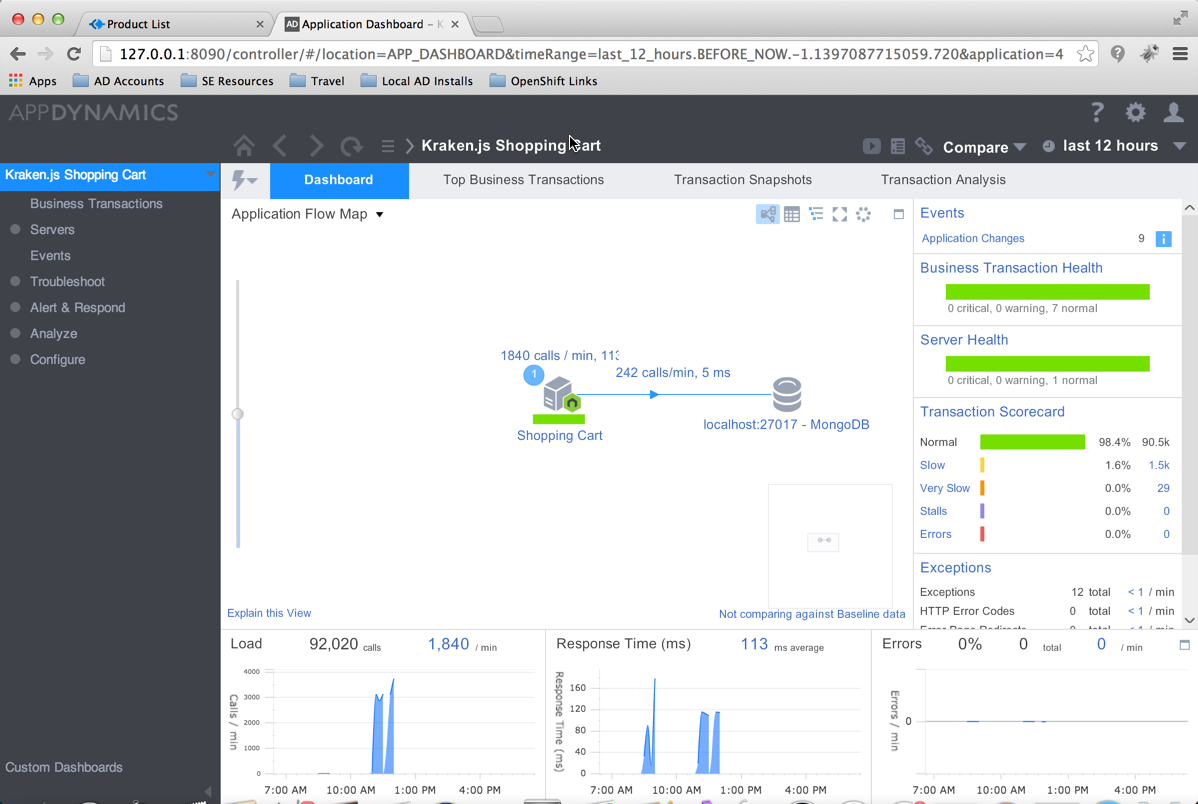

#Analyzing Kraken.js Shopping Cart in AppDynamics img/appdynamics-node-js.png
